GROUNDING SCHEMES
(8 October 2007)

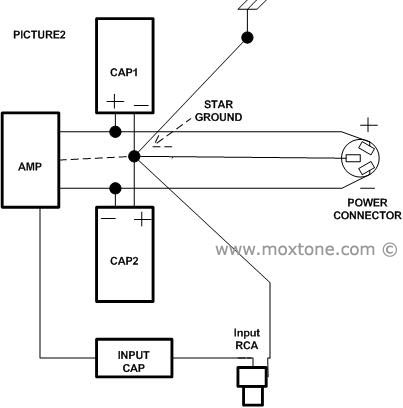

Simple gain-clone grounding scheme
(transformer and rectifier in separate chassis)

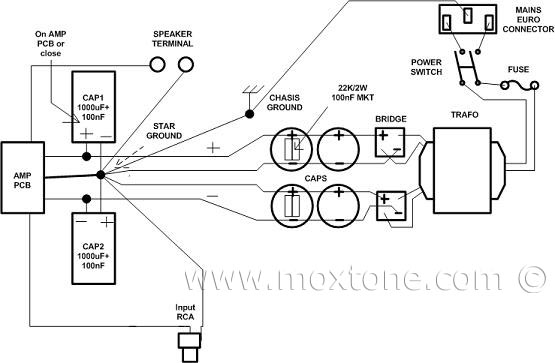

Simple gain-clone grounding scheme
(transformer and rectifier in shared chassis)

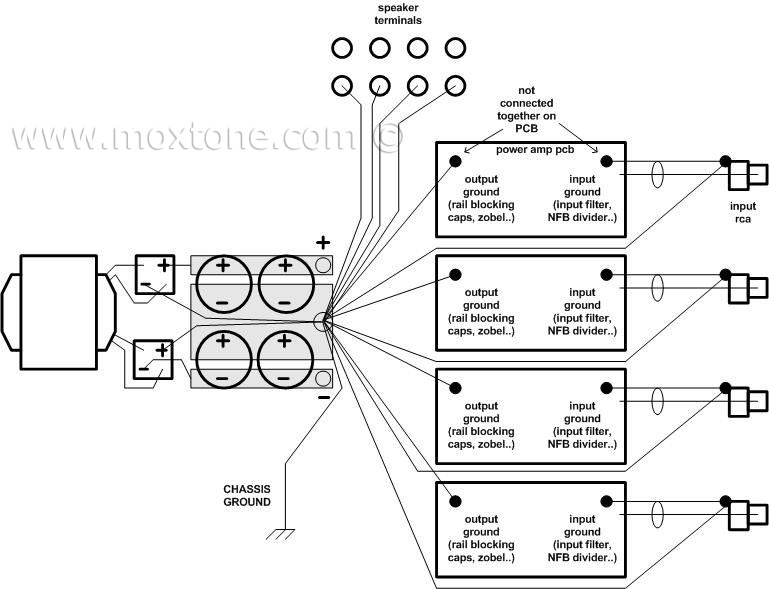

Complex (gain-clone) grounding scheme for 4 amplifiers powered by 1 power supply

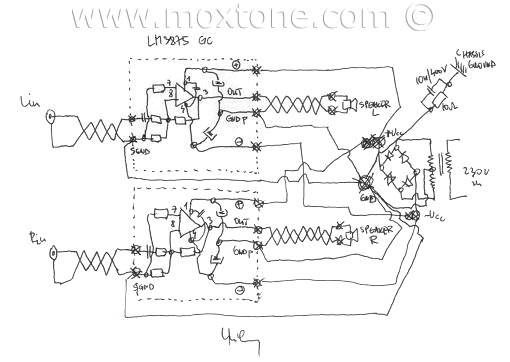

Simple gain-clone grounding scheme for stereo amplifier

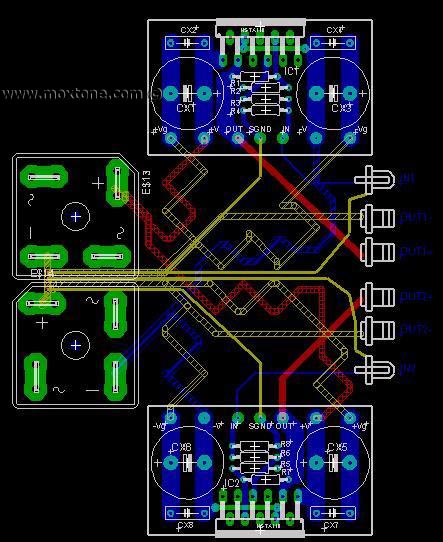

Simple gain-clone grounding scheme for stereo amplifier
(when capacitors are placed on amplifier PCB), picture 1
Simple gain-clone grounding scheme for stereo amplifier
(when capacitors are placed on amplifier PCB), picture 2
