REGULATORS

(8 October 2007)

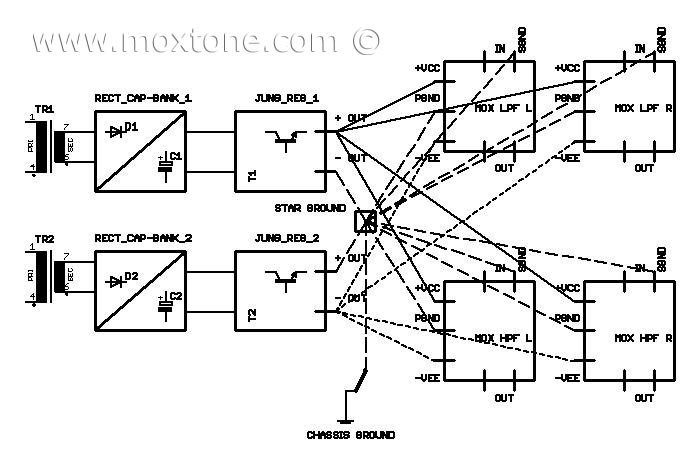

MOX active crossover powered by Jung super-regulator, block-diagram

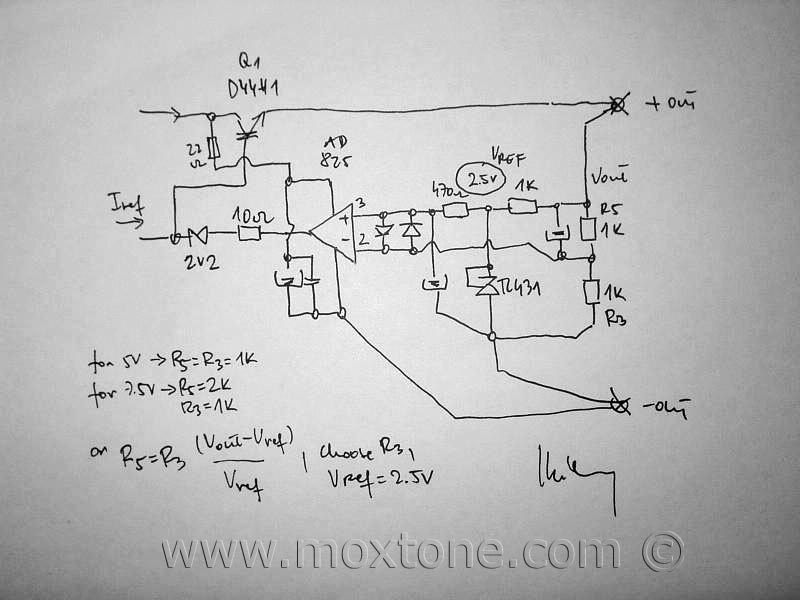

Jung super-regulator adjusted for +5V

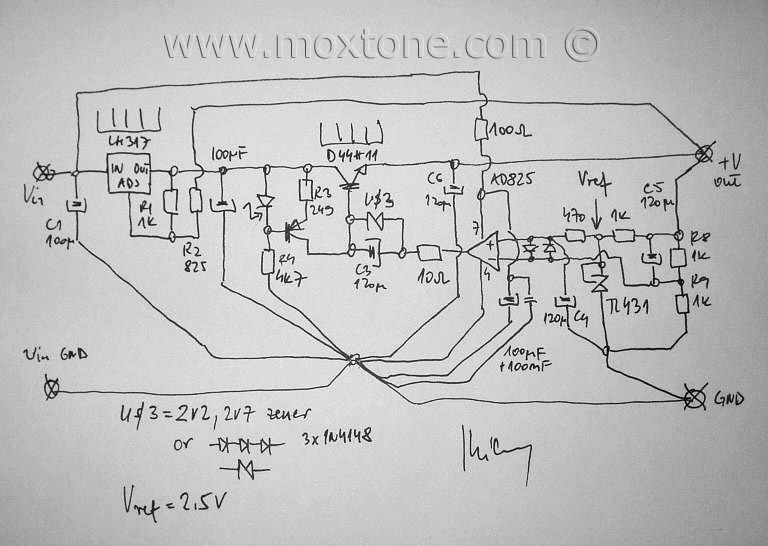

Jung super-regulator with pre-regulator adjusted for +5V
