Operational Amplifier Applications
(8 October 2007)

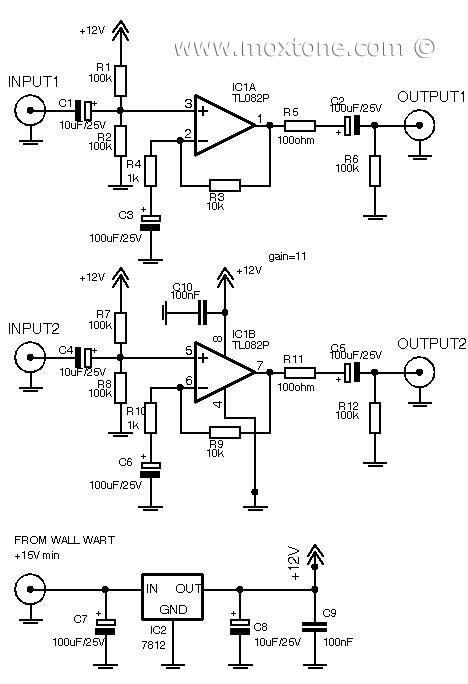

Simple non-inverting line amplifier (i.e. preamplifier) with single supply

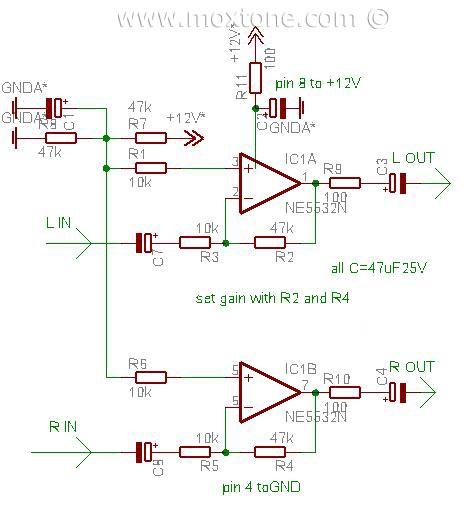

Inverting simple line amplifier (i.e. preamplifier) with single supply

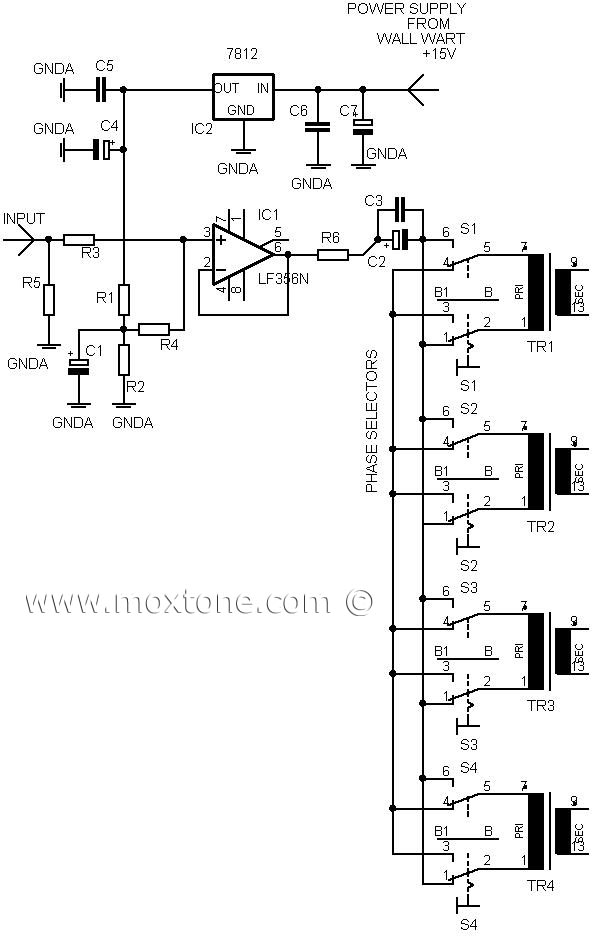

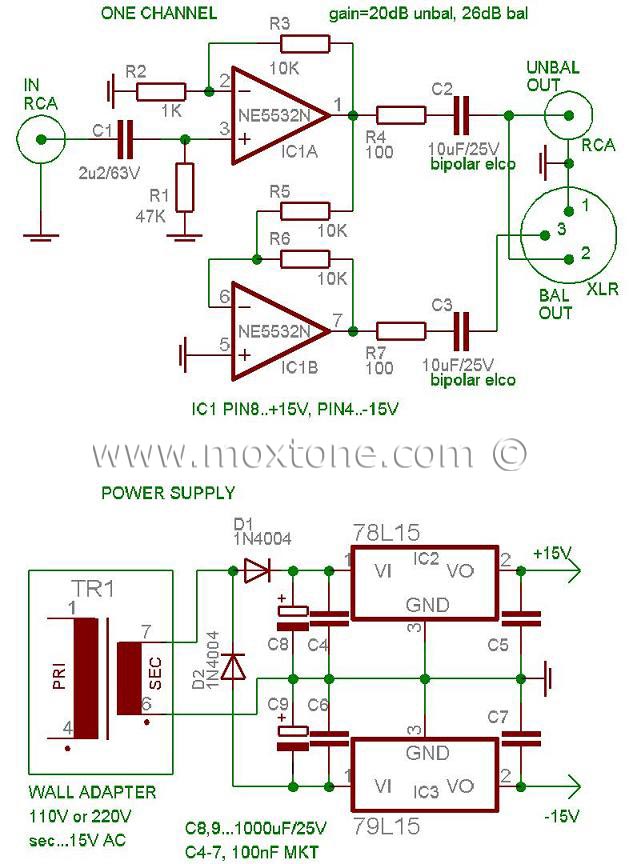

Simple unbalanced-to-balanced line converter
Distribution amplifier
Rod Elliott's

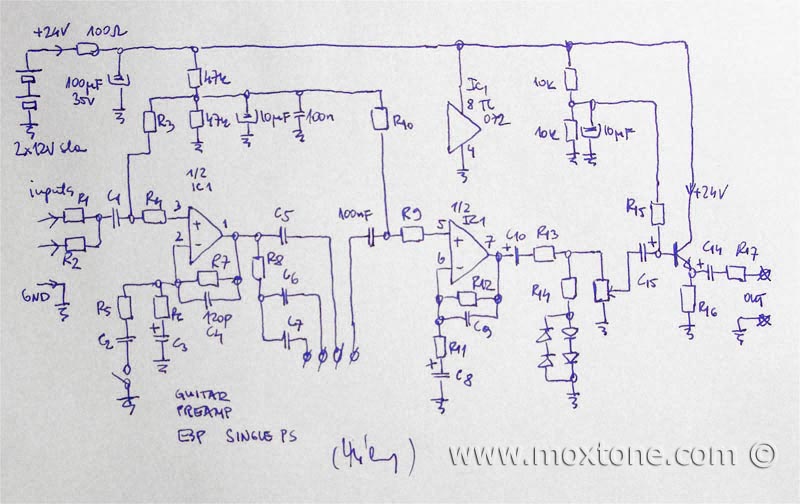

guitar pre-amplifier modified for single power supply

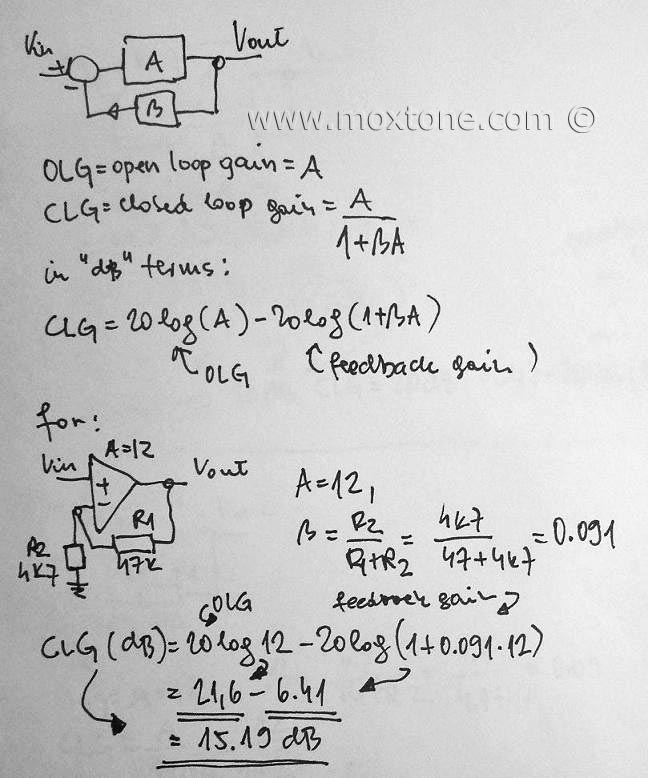

Non-inverting pre-amplifier gain calculations
